RF Input Power SMPS Flyback Transformer 1812WBT1.5-4L_ 1/4 Watt

1812WBT1.5-4L_ 50 V isolation 1/4 Watt RF input power SMPS Flyback Transformer

Feature:

• Provides wide band pass performance in a small SMT package.
• 1812 size ferrite body with a ceramic base.
• 50 V isolation, 1/4 Watt RF input power

Core material Ferrite
Terminations RoHS compliant gold over nickel over moly-manganese.
Other terminations available at additional cost.
Weight 131 – 152 mg
Ambient temperature –40°C to +85°C with Irms current
Storage temperature Component: –40°C to +85°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL) 1 (unlimited floor life at <30°C /
85% relative humidity)

1812WBT1.5-4L_ 50 V isolation 1/4 Watt RF input power SMPS Flyback Transformer

Shape and Dimensions:

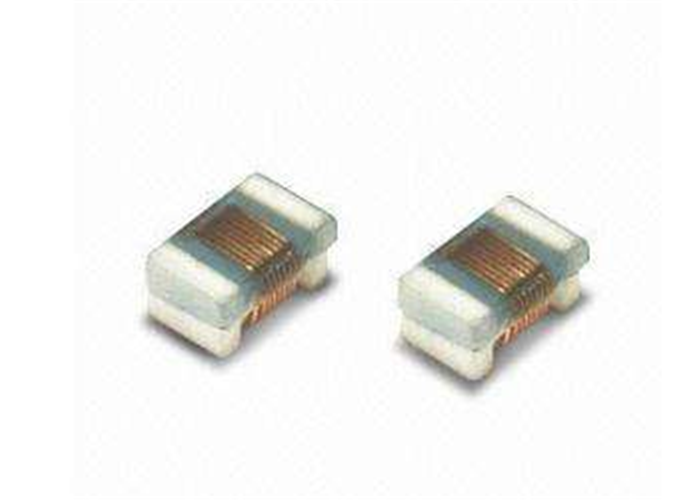

Product picture:

1812WBT1.5-4L_ 50 V isolation 1/4 Watt RF input power SMPS Flyback Transformer

HOW TO ORDER
1. Please send me your datasheet or part number you need.
2. We will offer the replacement quotation for your reference
3. The free samples are available for your approval.
4. After sample testing, we will step into the mass order.
5. The Proforma Invoice will send for your confirmation
6. After the goods finished, we send the goods to you and tell you the tracking number.
7. We will track your goods until you receive the goods.
Remarks:
1. Sample orders are avaliable.
2. Price is negotiable for orders of large quantity.
3. Customized orders (OEM/ODM orders) are avaliable.
4. Contact us for available flavors list. International Certifications:
1. ISO9001:2008
2. UL
3. Reach
4. RoHs
Our service:
1. 100% tested before shipping
2. Have alternative for Halo, Pluse, , We-online, Chilisin, Coilcraft......Same quality but better price
3. Free sample available
4. Provide new design for customer
